Hey folks hope every one had a great holiday, here are the current bits:

I have uploaded the V2 Spout files. This redesign was required due to the pump update as there is now only a single tube and it is a slightly larger diameter. They are in the design repo in their own subfolder: https://github.com/MugsyOS/Design/tree/main/spout-mech/spout-v2

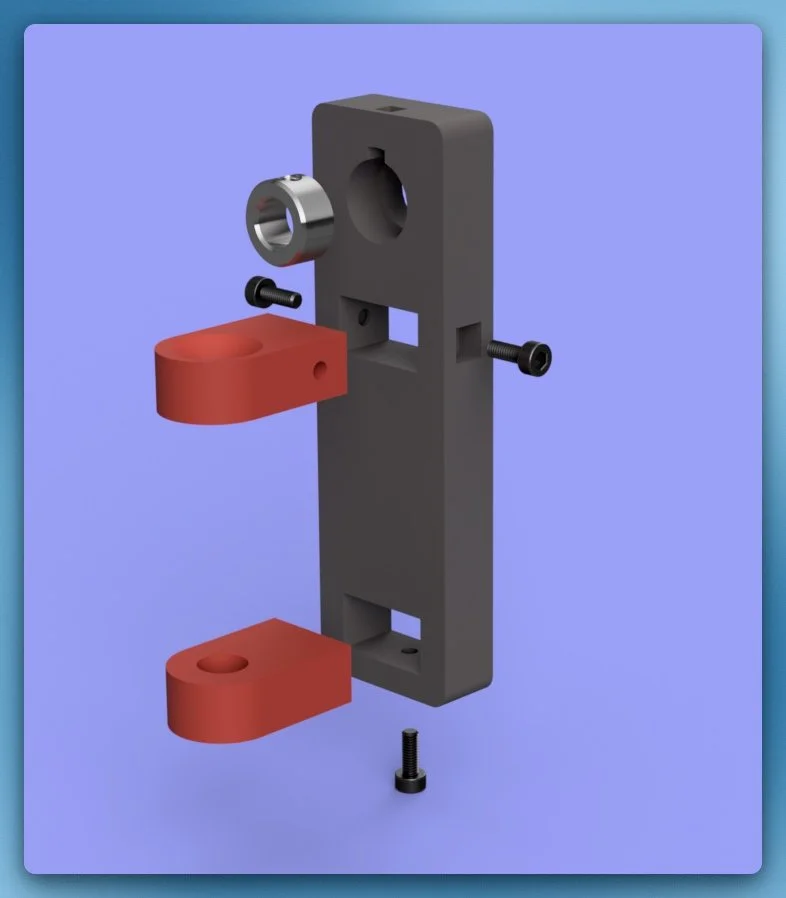

I have also updated the enclosure’s arm mount’s bearing type (to a flange mounted pillow block bearing} and still need to finish designing the fitting for it. This is way more rigid than the previous design, and allows the use of an 8mm linear rod instead of the threaded rod I was using.
I’m still mostly working on enclosure bits. Quick tasks that were put off while finishing Operator. This will likely be the case for another few days to a week. Once these items are done, most demos will be using Mugsy’s enclosure, except where it will impact the ability to properly show something off.
Next software task will be a small update to the mech scale to bring it up to feature parity with the mug scale. I also have two functions to integrate to combine the values of both scales so we know exactly how much water is moving, and how long it takes to get to the mug once it hits the coffee. These functions will be demonstrated in the next demo vid on Sunday, which will be using a proper pour over recipe instead of the “look at it go” style of the last couple of vids.
I still have not updated timelines for remaining tasks. But a rough estimate is 6 ish weeks for stuff to be ready or very close to it. Trying to make this timeline/task update a priority but the enclosure and pump work stole most of the focus lately. So hopefully will be able to get this done next week.

That’s all for now. I hope everyone has a great new year and I will see you again on Sunday. ( Need to push the next update to Tuesday or Wednesday, thanks! ) Cheers!
